Tube

Minimise linear tube is an ideal retrofit solution for traditional T8 fluorescent lamps. Offering both high performance and energy efficiency, it is an ideal solution for a wide range of applications which include
* Commercial environments
* Underground parking stations
* Signage lighting
* Residential





Features

  • Patented heat sink and optical diffuser
  • Retro-fit kits avaiable for direct replacement of T8/T10/T12 fluorescent fixtures
  • No Warm-up time, Instant-on with full-light output and stable color
  • Instant on / Instant off
  • Long useful life: (L70 > 50,000 Hours)
  • Working temperature: -20~40°C

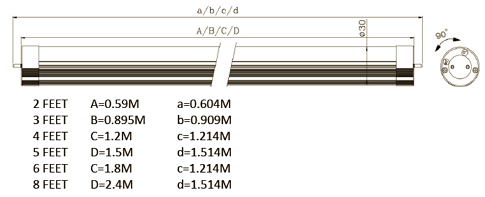

  • Various length available: 2/3/4/5/6/8 Feet







Light Source

  • LEDs Luminous Flux:
    • 2 Feet Tube: 1,000 lm
    • 3 Feet Tube: 1,420 lm
    • 4 Feet Tube: 1,950 lm
    • 5 Feet Tube: 2,310 lm
    • 6 Feet Tube: 2,950 lm
    • 8 Feet Tube: 3,850 lm
  • CCT
    • 2,800 - 3,200K (warm white)
    • 3,700 - 4,500K (neutral white)
    • 5,000 - 7,000K (white)
  • CRT: 75



Other Spec.

  • Input Voltage: AC100-277 , 50-60Hz
  • Power Efficiency: > 90%
  • Bean Angel: 120˚/180˚
  • Max Housing Temperature: ≤40°C
  • Operating Environment: -30°C~45°C/90% RH
  • Storage Environment: 40°C~80°C/90% RH
