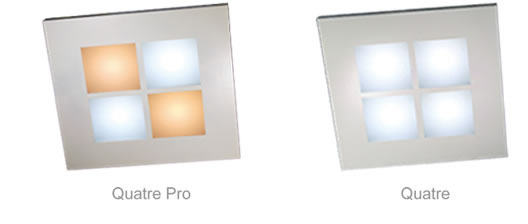

Quatre, consisting of only four ultra-high-power, sustainable 14W Light Engines, emits total lumen at up to 4,000 lm maintenance. In addition to high brightness, this LED luminaire spreads beautiful and uniform light by pairing with 4 special designed reflectors and diffusers.
Quatre is design for false ceiling which is adopted widely in commercial space. Benefit from the design of built-in power and driver, it can be placed directly into the 600mm x 600mm false ceiling and deliver high quality lighting effect with simple power conneciton.
Features
- Plug-and-play for easy installation
- False ceiling cutout size: 600mm x 600mm
- High performance optical system
- Beam Spread: 110°
- Light Color: white, mixed white
- Junction Temperature (Tj@Ta=25°C): < 60°C
- Long useful life: (L70 > 50,000 Hours)
Light Source
- Ultra-high-power Light Engine (14W)
- LEDs Luminous Flux:
- Quatre: 5,000 lm
- Quatre Pro: 4,564 lm
- CCT
- 4,000 - 5,000K (mixed white)
- 5,000 - 7,000K (white)
Power Supply
- Wattages: 56W
- Input Voltage: AC100 / 240V, 50-60Hz
- Input Current Range: 700 / 310 mA
- System Power Consumption: ≤ 68W
- Driving Current: Constant

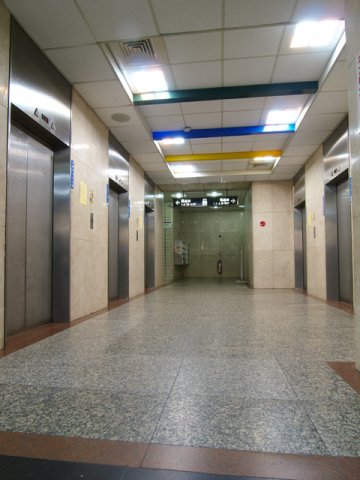

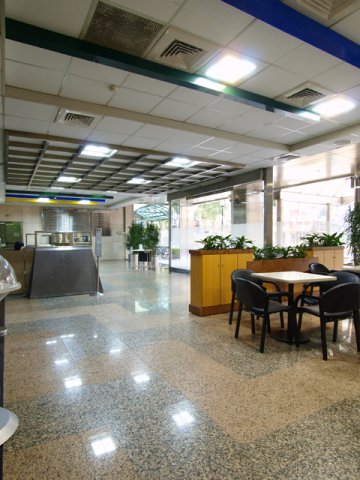

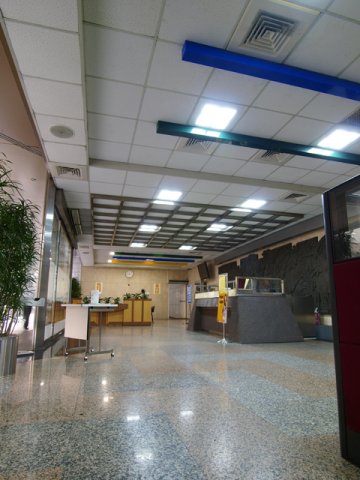

Live Installation
